A3 BLACK & WHITE imageRUNNER ADVANCE 4235

Enhanced reliability and productivity

Enhance document workflow, secure confidential information and reduce impact on the environment. The imageRUNNER ADVANCE 4235 is an intelligent monochrome multifunctional device that lets businesses do all that and more.

  • Standard duplex printing and support for USB print and scan
  • Mobile Printing and Scanning capability

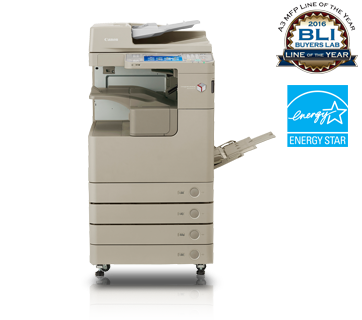

Click on the image for full view

Designed for productivity

 The imageRUNNER ADVANCE 4235 model delivers output speeds of up to 25 ppm in black-and-white and scanning at speeds of up to 51ipm. Comes with standard UFR II Printing and Color Universal Send, its powerful scanning feature converts paper documents into flexible, reusable digital formats – including Searchable PDF, XPS and optional Office Open XML (PowerPoint) formats. Equip it with internal or external finishers, and you can produce professional looking, finished documents.

Enhanced information security

Defending your information from unauthorized access is key to your business. Enhance your information security with imageRUNNER ADVANCE 4235 through a range of standard and optional accessories, network, and document security features. Disguise information before it’s written to the hard drive, and permanently remove it by overwriting when the job is complete with data encryption and erase options.

Reliable system integration

The imageRUNNER ADVANCE range is designed to seamlessly integrate into Canon and third-party software solutions. Providing powerful output management and offers easy, secure document sharing through Advanced Box. Other solutions include the Universal Login Manager (ULM), a MEAP-based server-less application gives administrators better control over print costs and document security by offering user-level personalization and usage tracking.

Specifications for imageRUNNER ADVANCE 4235

Type Monochrome Laser Multifunctional (Reader / Printer Separated)
Maximum Original Size A3
Copy Sizes Cassette 1: B4, A4, A4R, B5, B5R, and A5R
Cassette 2: A3, B4, A4, A4R, B5, B5R, A5R
Custom Size 139.7 x 182mm to 297 x 431.8mm
With installation of Envelope Feeder Attachment, envelopes can be used in cassette 2
Multi Purpose Tray: A3, B4, A4, A4R, B5, B5R, A5R, Custom size (99 x 148mm to 297 x 431.8mm), and Envelopes
Resolution Reading: 600 x 600dpi
Copying: 1200 x 600dpi (interpolated)
Printing: 1200 x 1200dpi
Copy / Print Speed A4: 25 ppm
A3: 15 ppm
Magnification Copy Ratio: 25 – 400{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f}
First Copy Time 5.2 seconds or less
Warm-Up Time From Power On: 30 seconds or less
From Sleep Mode: 10 seconds or less
Paper Weight Cassette 1: 60 to 128gsm
Stack Bypass: 52 to 220gsm
Paper Capacity Cassette 1, 2: 550 sheets x 2 cassettes (80gsm)
Cassette 3, 4:
(Optional)		 550 sheets x 2 cassettes (80gsm)
Multi Purpose Tray: 80 sheets (80gsm)
Paper Deck: 2,700 sheets (80gsm)
CPU 1.8GHz
Memory Standard: 1.256GB RAM
Maximum: 1.768GB RAM
Hard Disk Drive Standard: 160GB (Available Disk Space: 15GB)
Maximum: 1TB (Available Disk Space: 629.2GB)
Interface Ethernet (1000BaseT / 100Base-TX / 10Base-T)
USB2.0
Power Supply 220 – 240V AC, 50 / 60Hz
Power Consumption 1.5kW or less
Toner (Estimated Yield @ 5{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} Coverage) 30200
Drum Yield 138000
Dimensions (W x D x H) 565 x 708 x 902mm (Including the DADF)
Weight Approx. 78kg (Including the DADF)
Print Specification
PDL UFRII (Standard), PCL 5e / 6 (Optional), Adobe PostScript 3 (Optional)
Resolution 1200 x 1200dpi
Memory Standard: 1.256GB RAM
Maximum: 1.768GB RAM
Hard Disk Standard: 160GB
Maximum: 1TB
PS Fonts Roman 136
PCL Fonts Roman93, Bitmap10, OCR2
Supported OS PCL: Windows XP, Windows Vista, Windows 7, Windows 8, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Adobe PostScript 3: Windows XP, Windows Vista, Windows 7, Windows 8, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Mac OSX (10.4.9 or later)
UFR II Windows XP, Windows Vista, Windows 7, Windows 8, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Mac OSX (10.4.9 or later)
Interface Ethernet (1000BaseT / 100Base-TX / 10Base-T)
USB 2.0
Network Protocol TCP / IP (LPD / Port9100 / WSD / IPP / IPPS / SMB / FTP), IPv6, IPX / SPX (NDS, Bindery), AppleTalk
Pull Scan Network TWAIN Driver (75 to 600 dpi 24bit colour / 8bit grayscale / 2bit Black & White)
Send Specification (Optional)
Scan Speed (A4, 300dpi) Black & White / Colour: 51ipm
Resolution 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Additional memory upgrade is required for 200 x 400dpi, 400 x 400dpi or 600 x 600dpi scanning.
Destinations E-Mail / Internet FAX (SMTP), PC (SMB, FTP), iWDM, WebDAV
Address Book LDAP, Local (Max.1800)
File Format TIFF, JPEG, PDF, XPS, High Compression PDF / XPS, PDF / A-1b, Optimize PDF for Web

Accessories for imageRUNNER ADVANCE 4235

Optional Accessories
•

Universal Send Advanced Feature Set – D1

File Format Outline PDF (Trace & Smooth), Searchable PDF / XPS, Reader Extensions PDF, Office Open XML for PowerPoint
•

Universal Send Security Feature Set-D1

File Format Encrypted PDF, Device Signature PDF / XPS
•

Duplex Automatic Document Feeder – AG1

Type Automatic Document Feeder
Size of Originals A3, B4, A4, A4R, A5, A5R, B5, B5R, B6
Paper Weight Black and White Original: 1-sided scanning: 42 to 128gsm / 2-sided scanning: 50 to 128gsm
Colour Original: 64 to 128gsm
Max. Number of Originals 100 sheets (80 gsm)
Scanning Speed (max.) Copying (A4 in Black-and-White at 600 dpi):
1-sided scanning: 25ppm
2-sided scanning: 15ppm
Scanning (A4 in Black-and-White at 600 dpi or A4 in Black-and-White / Full Colour at 300 dpi):
1-sided scanning: 51ipm
2-sided scanning: 17ipm
Dimensions (W x D x H) 565x 540 x 140mm
Weight Approximately 7.9kg
•

Cassette Feeding Unit – AF1

Paper Size A3, B4, A4, A4R, B5, B5R, A5R, and Custom size
(139.7 x 182 to 297 x 431.8mm)
Paper Capacity 550 sheets x 2 cassettes (80gsm)
Power Source From main unit
Dimensions (W x D x H) 565 x 650 X 248mm
Weight Approx. 27.5kg
•

Staple Finisher / Booklet Finisher – G1

Number of Tray 2 trays
Paper Size A3, B4, A4, A4R, B5, B5R, A5R, Envelopes
Paper Weight 52 to 220gsm
Tray Capacity No Collating Mode

Upper Tray: A4, A5R 1,300 sheets / A3, A4R 650 sheets
Lower Tray: A4, A5R 1,700 sheets / A3, A4R 650 sheets

Collate, Group Mode

Upper Tray: A4 1,300 sheets / A3, A4R 650 sheets
Lower Tray: A4 1,700 sheets / A3, A4R 650 sheets

Staple Mode

Upper Tray: A4 1,300 sheets / 30 sets (or 188mm in height) /
A3, A4R 650 sheets / 30 sets (or 96mm in height)
Lower Tray: A4 1,700 sheets / 30 sets (or 243mm in height) /
A3, A4R 650 sheets / 30 sets (or 96mm in height)
Staple Capacity A4 50 sheets (80gsm)
A3, A4R: 30 sheets (80gsm)
Saddle Stitch
(For Booklet Finisher – G1 only)		 A3 and A4R: 16 sheets (52 to 81g/m2) / 10 sheets (82 to 105g/m2)
Paper Size: A3, A4R
Staple Capacity 16 sheets (80gsm)
Staple Position Staple Finisher: Corner, Double
Booklet Finisher: Corner, Double, Saddle Stitch
Dimensions (W x D x H) Staple Finisher-G1: 648 x 646 x 1,097mm (when the auxiliary tray is extended)
Booklet Finisher-G1: 766 x 646 x 1,097mm (when the auxiliary tray is extended)
Weight Staple Finisher: Approx. 46.0kg
Booklet Finisher: Approx. 75.0kg
•

Other Optional Accessories

– Platen Cover Type R
– Paper Deck Unit-B2 A4
– Envelope Feeder Attachment-D1
– Inner 2Way Tray-H1
– Inner Finisher-D1
– Inner 2 Hole Puncher-A1
– Inner Finisher Additional Tray-A1
– Buffer Pass Unit-H1
– External 2 Hole Puncher-B2
– Utility Tray-A2
– Copy Card Reader-F1
– Copy Card Reader Attachment-B3
– Copy Control Interface Kit-A1
– EM Controller-C1
– FL Cassette-AM1
– FL Cassette-AQ1
– Stamp Unit-B1
– Serial Interface Kit-K1
– Stamp Ink Cartridge-C1
– Staple Cartridge-J1
– Staple Cartridge-D2
– Staple Cartridge-D3
– Cassette Heater Unit-37
– Paper Deck Heater Unit-C1
– Reader Heater-H1 200V
– Heater Kit-K1 200V
– Drum Heater-C1
– PCL Printer Kit-AY1
– PCL Font Set-A1 EFIGS
– Barcode Printing Kit-D1
– PS Printer Kit-AY1
– Direct Print Kit (For PDF)-H1
– Direct Print Kit (For XPS)-H1
– Super G3 Fax Board-AP1
– Super G3 2nd Line Fax Board-AP1
– Super G3 3rd / 4th Line Fax Board-AL1
– Remote Fax Kit-A1
– IP Fax-A1
– Expansion Bus-F2
– USB Device Port-E3
– Multimedia Reader / Writer-A2
– 512MB RAM Type A
– Web Access Software-H1
– Universal Send Digital User Signature Kit-C1
– Encrypted Printing Software-D1
– Secure Watermark-B1
– HDD Encryption and Mirroring Kit-C4 EX
– HDD Mirroring Kit-H1
– 2.5INCH / 160GB HDD-G1
– 2.5INCH / 1TB HDD-K1
– Removable HDD Kit-AJ1
– Access Management System Kit-B1
– Document Scan Lock Kit-B1
– iR-ADV Security Kit-K1
– Remote Operators Software Kit-B1
– ADF Access Handle-A1
– Voice Operation Kit-C2
– Voice Guidance-F2

Consumables for imageRUNNER ADVANCE 4235

Paper

    • Canon Premium

      Premium white paper with consistent performance and reliability for high quality volume copying and printing. Produced using 100{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} Eucalyptus fibre offering high bulk and opacity.

      Size Packaging Price per ream
      A4 (70gsm) 500 sheets/ream (5/ctn)
      A4 (80gsm) 500 sheets/ream (5/ctn)
    • Canon Business High Grade

      High grade white paper for general office use. Good opacity eliminates show-through with double sided copying and printing.

      Size Packaging Price per ream
      A4 (70gsm) 500 sheets/ream (5/ctn)
      A4 (80gsm) 500 sheets/ream (5/ctn)
      A3 (70gsm) 500 sheets/ream (5/ctn)
      A3 (80gsm) 500 sheets/ream (5/ctn)
    • Canon Standard

      Canon Standard is made for high volume and quality printing while keeping the running cost competitive. Ideal paper for your daily high intensity printing needs.

      Size Packaging Price per ream
      A4 (70gsm) 500 sheets/ream (5/ctn)
      A4 (80gsm) 500 sheets/ream (5/ctn)
      A3 (70gsm) 500 sheets/ream (5/ctn)
      A3 (80gsm) 500 sheets/ream (5/ctn)
    • Canon Recycled Plus

      Canon Recycled Plus is a quality paper produced with 100{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} post-consumer waste, without optical whiteners. This paper enables excellent run-ability and is designed for broad range of home and office applications for customers where the environment is of vital importance.

      Size Packaging Price per ream
      A4 (80gsm) 500 sheets/ream (5/ctn)
  • Canon Tints

    Tints are evenly spread throughout the paper so every square centimeter on both sides of the paper has the same perfect colour. Canon Tints provide the perfect solution for every kind of business applications. For prints that are impressive, eye catching and vividly expressive. Suitable for copiers, laser printers and inkjet printers.

    Size Packaging Price per ream
    A4 80gsm (Cream) 500 sheets/ream (5/ctn)
    A4 80gsm (Yellow) 500 sheets/ream (5/ctn)
    A4 80gsm (Ice Blue) 500 sheets/ream (5/ctn)
    A4 80gsm (Medium Green) 500 sheets/ream (5/ctn)
    A4 80gsm (Lavender) 500 sheets/ream (5/ctn)
