A3 COLOUR imageRUNNER C3020

NEW!

Quality meets simplicity in new imageRUNNER colour device

Designed with simplicity in mind, the imageRUNNER C3020 serves to provide greater work productivity and security to users’ daily workflow by making operations an ease. With V2 colour technology, standard Wi-Fi and Direct Access Point, enjoy quality colour printouts with seamless connection.

  • Speed: 20ppm
  • 5 Inch Touch Panel
  • V2 Colour Technology
  • Secure Print
  • Department ID

Click on the image for full view

Simple to use interface & quality prints

Built with a 5-inch LCD screen, the imageRUNNER C3020 offers quick and easy navigation across the user interface with touch panel controls. Incorporating swipe, flick and scroll actions, users are able to enjoy an easy navigation on its user interface.

Canon’s V² colour imaging technology delivers outstanding colour quality. Be impressed with vivid and vibrant quality prints time after time.

Enhance the way you work

Print directly from your USB with direct printing. Avoid print mistakes with the Preview function when printing from USB.

Never worry about scanning your documents in the wrong orientation with Smart Scan. It automatically rotates your scans when necessary.

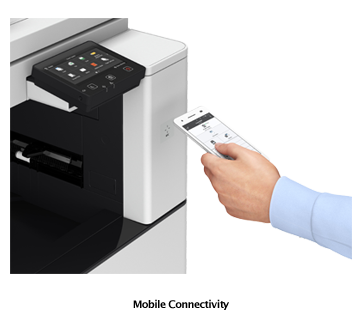

Direct connectivity with mobile

With built-in wireless LAN function, the imageRUNNER C3020 comes with Direct Access Point capability. Print directly without requiring to be in the same network.

Canon Print Business app and a variety of mobile print service plugins such as, Canon Print Service, Google Cloud Print, AirPrint and Mopria Print Service are also supported, enabling users to print from smart devices.

Specifications for imageRUNNER C3020

Main Unit
Machine Type Colour Laser Multifunctional
Core functions Print, Copy, Scan, Send, Store and Optional Fax
Processor Canon Dual Custom Processor (Shared)
Control Panel 5 inch TFT LCD WVGA Colour Touch panel
Memory Standard: 2.0GB RAM
Interface Connection NETWORK Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
Optional: NFC
OTHERS Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1;
Optional: Copy Control Interface
Paper Capacity (A4, 80/m²) Standard: 1,200 Sheets
Maximum: 2,300 Sheets
Paper Source (A4, 80/m²) Standard: Two 550-sheet paper cassettes
100-sheets Multi Purpose Tray
Optional: Dual 550-sheet paper cassettes (CASSETTE FEEDING UNIT-AP1)
Maximum: 2,300 Sheets
Paper output capacity (A4, 80/m²) Standard: 250 Sheets
With Inner Finisher: 600 sheets *INNER FINISHER-K1
Finishing capabilities Standard: Collate, Group
With Inner Finisher: Collate, Group, Offset, Staple, Staple-Free Staple, Staple-on-Demand
Supported media sizes Cassette 1: Standard size: A4, B5, A5R
Envelopes: ISO-C5
Custom Size: 139.7 x 182mm to 297 x 215.9mm
Cassette 2: Standard size: A3, B4, A4, B5, A4R, A5R
Envelopes: No.10 (COM10), Monarch, DL
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm
Cassete 3/4 (CASSETTE FEEDING UNIT-AP1): Standard size: A3, B4, A4, A4R, B5R, B5, A5R
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm
Multi-purpose tray: Standard size: A3, B4, A4, A4R, B5R, B5, A5, A5R, SRA3
Custom size: 98.4 x 139.7mm to 320 x 457.2mm
Envelopes: No.10 (COM10), Monarch, ISO-C5, DL
Supported Media Weights Cassette 1,2: 52 to 220g/m²
Cassette Feeding Unit: 52 to 220g/m²
Multi-purpose tray: Coated paper: 52 to 256g/m²
Heavy Paper: 52 to 300g/m²
Duplex: 52 to 220g/m²
Warm-up Time From Power On: 30 Seconds or Less
From Sleep Mode: 10 Seconds or Less
Dimensions (W x D x H) DADF-AV1: 565 x 664 x 880mm
PLATEN COVER TYPE W: 565 x 635 x 777mm
Installation Space(W x D) Basic: 978 x 1,117mm (when attach with DADF-AV1 + Multi-purpose tray extension extended + Cassette open)
978 x 1,088mm (imageRUNNER C3020 + Multi-purpose tray extension extended + Cassette open)
Fully Configured: 1,110 x 1,117mm （when attach with imageRUNNER C3020 + INNER FINISHER-K1 + Multi-purpose tray extension extended + Cassette open）
Weight Approx. 69.8kg including toner (when attach with DADF-AV1)
Toner (Estimated Yield @ 5{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} Coverage) Black: 36,000
Colour: 19,000
Drum Yield 54,000
Print Specifications
Printing method Colour Laser Beam Printing
Print Speed (BW/CL) 20ppm (A4), 15ppm (A3)
Print Resolution 600 x 600dpi, 1200 x 1200dpi
Page description languages UFR II （Standard）, PCL 6, Adobe PS3 (Option)
Double Sided Printing Automatic (Standard)
Direct Print Direct printing available from USB memory key
Supported file types: TIFF, JPEG, PDF and XPS.
Fonts PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts*

PS fonts: 136 Roman
*Require optional BARCODE PRINTING KIT-D1
Operating System UFRII: Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later), Linux
PCL: Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016
PS: Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Windows 8 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7.5 or later)
PPD: MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows 8 / Windows10
Copy Specifications
Copy Speed (BW/CL) 20ppm (A4), 15ppm (A3)
First-Copy-Out Time (BW/CL) Approx. 5.9 / 8.2 seconds or less
Copy resolution Reading: 600 x 600dpi
Multiple Copies Up to 999 copies
Copy Exposure Automatic or Manual (11 Levels)
Magnification 25 – 400{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} (1{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} Increments)
Scan Specifications
Type Colour Platen and Duplexing Automatic Document Feeder
Supported media size/s DADF-AV1: A3, B4, A4R, A4, B5R, B5, A5R, A5, B6
Pull Scan Specifications Colour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows Vista / 7 / 8 / 8.1 / 10
Scan Resolution 300 x 300dpi, 600 x 600dpi
Scan Method Send, Scan to USB, Pull scanning
Document Feeder Paper Capacity DADF-AV1: 100 Sheets (80g/m²)
Double sided scanning 2-sided to 2-sided (Automatic)
Send Specifications
Destination E-mail / Internet FAX (SMTP), SMB, FTP, Super G3 FAX(Optional)
Colour Mode Auto Colour Select (Full Colour, Grayscale),
Auto Colour Select (Full Colour/ Black-and-White)
Full Colour, Grayscale, and Black-and-White
Address Book LDAP (5) / Local (300) / One-touch (281)
Send resolution 300 x 300dpi
Communication protocol File: FTP, SMB v3.0
E-mail / I-Fax: SMTP, POP3, I-Fax (Simple)
File Format Standard: TIFF, JPEG, PDF(Compact, Searchable)
Optional: PDF(Encrypted, Digital Signature)
Fax Specifications
Optional / Standard Optional on all models
Maximum Number of Connection Lines 1
Modem Speed Super G3: 33.6kbps
G3: 14.4kbps
Compression Method MH, MR, MMR, JBIG
Resolution 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi
Sending / Recording Size A5* and A5R* to A3

*Sent as A4
FAX memory Up to 512 pages
Speed dials Max. 281
Group dials Max. 299 dials
Security Specifications
Authentication Standard: Department ID Authentication, uniFLOW connectivity
Environmental Specifications
Operating Environment Temperature: 10 to 30°C (50 to 86°F)
Humidity: 20 to 80{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} RH (no condensation)
Power source 220 – 240V (±10{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f}), 50 / 60Hz (±2Hz), 4.0 Amp
Power consumption Maximum: Approx. 1.5kW
Standby: Approx. 33.6W*

* Reference Value
Sleep mode: Approx. 2W (Wireless LAN power save mode:OFF), 1W (Wireless LAN power save mode:ON)

Accessories for imageRUNNER C3020

Paper Supply Options
•
CASSETTE FEEDING UNIT-AP1
Paper Size: A3, B4, A4, A4R, B5R, B5, A5R
Custom Size: 139.7 x 182mm to 304.8 x 457.2mm
Paper Weight: 52 to 220g/m²
Paper Capacity: 1,100 sheets (80g/m²)
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 615 x 248mm
Weight: Approx. 16kg
•

Other Optional Accessories

  • INNER 2WAY TRAY-J1
  • INNER SHIFT SORTER-A1
  • INNER FINISHER K1
  • COPY TRAY-J2
  • UTILITY TRAY-B1
  • COPY CARD READER-F1
  • COPY CARD READER ATTACHMENT-H2
  • SEND PDF SECURITY FEATURE SET-E1
  • BARCODE PRINTING KIT-D1
  • COPY CONTROL INTERFACE KIT-D1
  • NFC KIT-D1
  • SUPER G3 FAX BOARD-AV1
  • ADF ACCESS HANDLE-A1

Consumables for imageRUNNER C3020

Paper

    • Canon Premium

      Premium white paper with consistent performance and reliability for high quality volume copying and printing. Produced using 100{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} Eucalyptus fibre offering high bulk and opacity.

      Size Packaging Price per ream
      A4 (70gsm) 500 sheets/ream (5/ctn)
      A4 (80gsm) 500 sheets/ream (5/ctn)
    • Canon Business High Grade

      High grade white paper for general office use. Good opacity eliminates show-through with double sided copying and printing.

      Size Packaging Price per ream
      A4 (70gsm) 500 sheets/ream (5/ctn)
      A4 (80gsm) 500 sheets/ream (5/ctn)
      A3 (70gsm) 500 sheets/ream (5/ctn)
      A3 (80gsm) 500 sheets/ream (5/ctn)
    • Canon Standard

      Canon Standard is made for high volume and quality printing while keeping the running cost competitive. Ideal paper for your daily high intensity printing needs.

      Size Packaging Price per ream
      A4 (70gsm) 500 sheets/ream (5/ctn)
      A4 (80gsm) 500 sheets/ream (5/ctn)
      A3 (70gsm) 500 sheets/ream (5/ctn)
      A3 (80gsm) 500 sheets/ream (5/ctn)
    • Canon Recycled Plus

      Canon Recycled Plus is a quality paper produced with 100{bd660cfc240487fe5a6b17f561e57e03c45345fcca1fa7d3208ca7f4af4cc97f} post-consumer waste, without optical whiteners. This paper enables excellent run-ability and is designed for broad range of home and office applications for customers where the environment is of vital importance.

      Size Packaging Price per ream
      A4 (80gsm) 500 sheets/ream (5/ctn)
  • Canon Tints

    Tints are evenly spread throughout the paper so every square centimeter on both sides of the paper has the same perfect colour. Canon Tints provide the perfect solution for every kind of business applications. For prints that are impressive, eye catching and vividly expressive. Suitable for copiers, laser printers and inkjet printers.

    Size Packaging Price per ream
    A4 80gsm (Cream) 500 sheets/ream (5/ctn)
    A4 80gsm (Yellow) 500 sheets/ream (5/ctn)
    A4 80gsm (Ice Blue) 500 sheets/ream (5/ctn)
    A4 80gsm (Medium Green) 500 sheets/ream (5/ctn)
    A4 80gsm (Lavender) 500 sheets/ream (5/ctn)
